Model: Product Series of Photovoltaic Power System

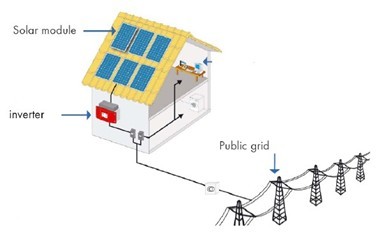

Conventional grid PV power system


  Conventional grid PV power system:

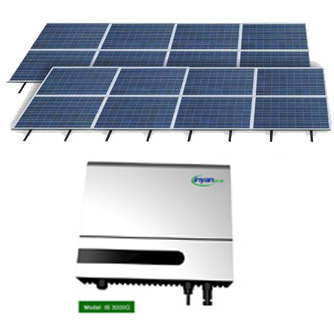

  RECOMMENDED CONFIGURATION:

SPECIFICATION

Product Model

ISS300G

ISS600G

ISS2000G

ISS4000G

ISS6000G

BASIC CONFIGURATION

PV Moudle

300WP

600WP

2000WP

4000WP

6000WP

Inverter

250W/G

500W/G

1500W/G

3KW/G

5KW/G

Installation Accessories

Cables, Connection & Racking

BASIC TECHNICAL PARAMETER

Nominal Power Output

250W

500W

1500W

3000W

5000W

Nominal Output Voltage

110Vac/230Vac Optional

Allowable Output Voltage

80140Vac/180260Vac Optional

Output Frequency

50Hz/60Hz

Allowable Output Frequency

47~51.5Hz/57~61.5Hz

Total Harmonic Distortion(THD)

<3%Nominal Power

Power Factor

≥0.99Nominal Power

Anti-Island Protection

YES

Peak Inverter Efficiency

93%

95%

Protective Class

IP43(Indoor)

IP54(Outdoor)

Power Consumption at Night

0 W

Cooling

Air Cooling

Operating Temperture Range

-25+60,Humidity:0~95%Non-Condensing,High Altitude below 3000M

Display

LCD

Communication

No

RS485

Noise

≤41dB

Characteristics:

    1. System kernel –the inverter used in the system is a grid-connected type yielded from the patent technology of the company and it has better reliability in grid connection than similar products in market.

    2. The system technology of introducing the Internet of things can realize remote control and failure diagnosis.
