Model: Product Series of Photovoltaic Power System
Stylish (micro-inverter) grid PV generation system




  Stylish (micro-inverter) grid PV power system product series:



  RECOMMENDED CONFIGURATION:

Specification

Product Model

ISS220G

ISS180G

Basic Configuration

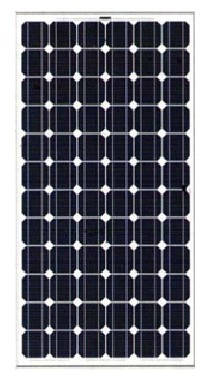

PV Moudle

220WP

180WP

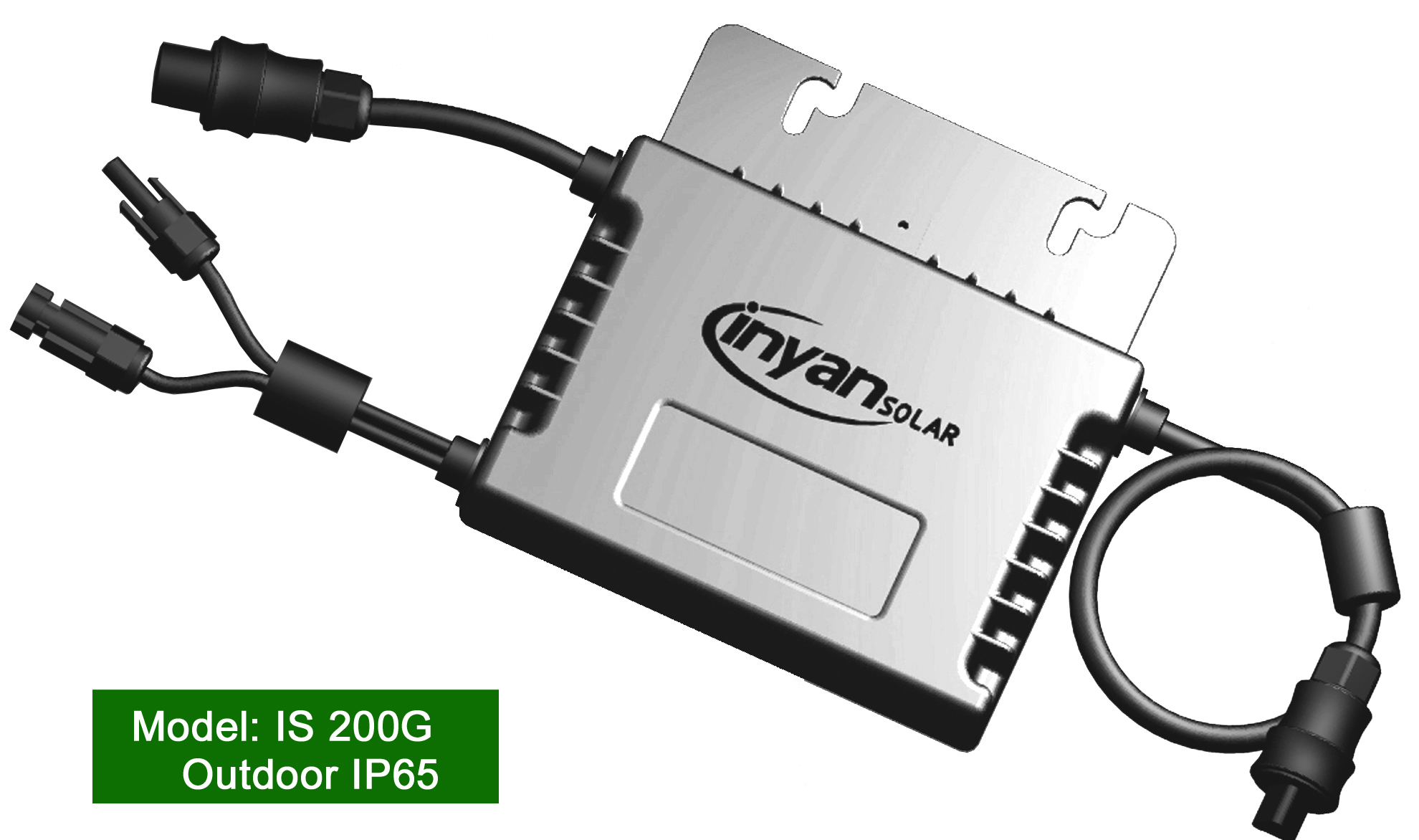

Inverter

IS200G

IS160G

System Box

Aluminium Alloy Box

Aluminium Alloy Box

Installation Accessories

Cables, Connection & Racking

Cables, Connection & Racking

Basic Technical Parameter

Nominal Power Output

200W Optional

160W Optional

Nominal Output Voltage

110Vac/230Vac Optional

110Vac/230Vac Optional

Allowable Output Voltage

80140Vac/180260VacOptional

80140Vac/180260VacOptional

Nominal Output Frequency

50Hz/60Hz

50Hz/60Hz

Allowable Output Frequency

47~51.5Hz/57~61.5Hz

47~51.5Hz/57~61.5Hz

Total Harmonic Distortion(THD)

<3%Nominal Power Output

<3%Nominal Power Output

Power Factor

≥0.99Nominal Power Output

≥0.99Nominal Power Output

Anti-Island Protection

Yes

Yes

Peak Inverter Efficiency

94%

94%

Protective Class

IP65

IP65

Power Consumption at Night

0W

0W

Cooling

Self-Cooling

Self-Cooling

Operating Temperture Range

-25+60,Humidity:0~95%Non-Condensing,High Altitude below 3000M

-25+60,Humidity:0~95%Non-Condensing,High Altitude below 3000M

Display

LED

LED

Communication

RS485

RS485

Noise

No

No

Dimension

1670x992x50(MM)

1580x808x35(MM)

Weight

21.8(KGS)

15(KGS)

Characteristics:
    1. This system, unrestricted in power stage, is flexible and agile. Users may easily make their own configuration of installed capacity in accordance with the space and power demand. 200W×N units = total installed capacity.

    2. System kernel - the inverter used is IP65 distributed grid type yielded from the patent technology of the company and is characterized as high efficiency, high adaptability, high protection, and no noise, which makes the system more economical, reliable, secure, and environment-friendly.

    3. The system is easy to install to the extent that qualified installation personnel may not be needed. It supports plug and play.

    4. The system composes N units in series and requires simple maintenance. Any failure of a unit will not affect the normal operation of the whole system; every unit of the system is designed with a failure indication light and is thus easy to be diagnosed.
