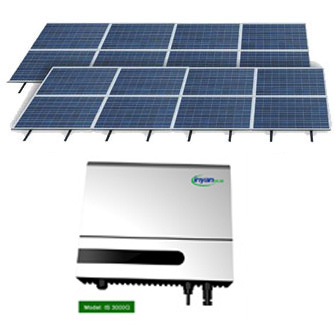

Model: Product Series of Photovoltaic Power System |

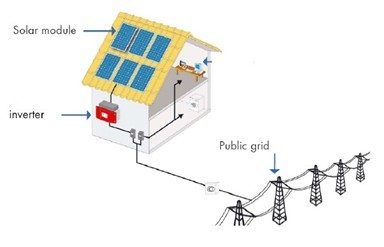

Conventional grid PV power system |
|
| |
普通并网光伏发电系统：
推荐配置：
|
Specification |
|
Product Model |
ISS300G |
ISS600G |
ISS2000G |
ISS4000G |
ISS6000G |
|
Basic Configuration |
|
PV Moudle |
300WP |
600WP |
2000WP |
4000WP |
6000WP |
|
Inverter |
250W/G |
500W/G |
1500W/G |
3KW/G |
5KW/G |
|
Installation Accessories |
Cables, Connection & Racking |
|
Basic Technical Parameter |
|
Nominal Power Output |
250W |
500W |
1500W |
3000W |
5000W |
|
Nominal Output Voltage |
110Vac/230Vac Optional |
|
Allowable Output Voltage |
80～140Vac/180～260Vac Optional |
|
Output Frequency |
50Hz/60Hz |
|
Allowable Output Frequency |
47~51.5Hz/57~61.5Hz |
|
Total Harmonic Distortion(THD) |
<3%（Nominal Power） |
|
Power Factor |
≥0.99（Nominal Power） |
|
Anti-Island Protection |
YES |
|
Peak Inverter Efficiency |
≥93% |
≥95% |
|
Protective Class |
IP43(Indoor) |
IP54(Outdoor) |
|
Power Consumption at Night |
0 W |
|
Cooling |
Air Cooling |
|
Operating Temperture Range |
-25～+60℃,Humidity:0~95%Non-Condensing,High Altitude below 3000M |
|
Display |
LCD |
|
Communication |
No |
RS485 |
|
Noise |
≤41dB |
特点:
1.系统核心—逆变器均采用本公司专利技术之并网逆变器,并网可靠性优于市场同类产品。
2.系统导入物联网技术，可实现远程监控和故障诊断。 |
|
|
|
